When it comes to heavy lifting and construction projects, cranes are indispensable. But not all cranes are created equal. Among the most popular types in the lifting industry are lattice boom cranes and telescopic boom cranes. Both have unique features, benefits, and applications, but deciding which type is best suited for your project can sometimes be challenging. In this article, we will explore these two crane types in detail, comparing their design, capabilities, pros and cons, and typical uses to help you make an informed decision.
Understanding the Basics: What Are Lattice Boom Cranes?

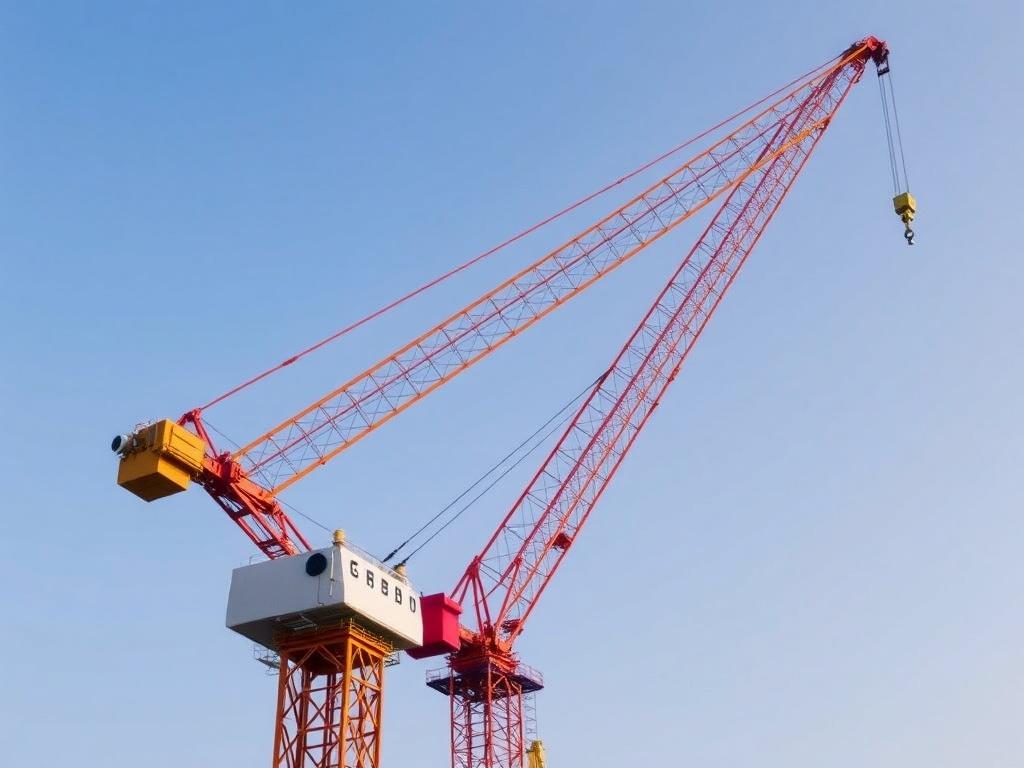

Lattice boom cranes derive their name from the long, open steel framework called a lattice boom. This lattice structure is made up of interconnected steel bars arranged in a crisscross pattern, creating a boom that is both strong and lightweight. The lattice boom is usually fixed in length but can be assembled in sections to reach various boom lengths.
One of the standout features of lattice boom cranes is their remarkable lifting capacity. Because of the stability provided by the lattice boom design, these cranes can lift extremely heavy loads, often in excess of 500 tons. This makes them especially popular for large-scale industrial projects like bridge construction, wind turbine installation, and heavy equipment moving.
Lattice boom cranes come in different configurations, such as crawler cranes and truck-mounted cranes. Crawler lattice boom cranes are known for their ability to move around a job site on continuous tracks, providing excellent mobility on uneven terrain without damaging the ground. Their setup can take more time compared to other types, but once in place, they offer superb stability and reach.
Getting to Know Telescopic Boom Cranes
Telescopic boom cranes, sometimes referred to as hydraulic cranes, feature a boom composed of multiple tubular sections that slide in and out, much like a telescope. This design allows the boom to extend and retract quickly, producing a versatile range of boom lengths from a compact size to a fully extended reach.
One of the main advantages of telescopic boom cranes is their rapid deployment and maneuverability. Since the boom can be retracted, the crane takes up less space during transport and can navigate through tight areas or urban construction sites where space is limited. Their boom length can be adjusted easily during operation, which adds to operational efficiency.
Telescopic boom cranes are usually mounted on trucks or all-terrain vehicles, giving them fast travel speed on roads as well as moderate off-road capabilities. These cranes typically have lifting capacities ranging from a few tons up to around 200 tons, making them highly suitable for medium-weight lifting tasks.
Key Differences Between Lattice Boom Cranes and Telescopic Boom Cranes
Now that we’ve explored the basic designs of lattice boom cranes and telescopic boom cranes, it’s important to highlight the key differences that set these cranes apart. Below is a table summarizing their main characteristics:
Feature | Lattice Boom Cranes | Telescopic Boom Cranes |
---|---|---|
Boom Design | Steel lattice framework, fixed or sectional | Hydraulic telescoping tubular sections |
Lifting Capacity | Very high – up to 500+ tons | Moderate – usually up to 200 tons |
Mobility | Crawler tracks or truck-mounted, slower setup | Truck-mounted or all-terrain, quick travel on roads |
Setup Time | Longer setup and assembly | Rapid deployment and easier setup |
Boom Length Adjustability | Fixed or sectional assembly | Hydraulic boom extends/retracts during operations |
Operational Terrain | Uneven or rough terrain with crawler models | Urban and moderately rough terrain |
Portability | Heavy and bulky; usually transported in sections | Compact when retracted; easy highway transport |
Advantages of Lattice Boom Cranes
Lattice boom cranes have several strengths that make them indispensable for specific tasks. First and foremost, their structural design provides incredible lifting power and reach. Because of their high strength-to-weight ratio, these cranes are excellent for handling ultra-heavy loads that telescopic boom cranes simply cannot manage.
The modular nature of the lattice boom allows operators to customize the length and configuration depending on the project requirements. This flexibility is valuable when lifting in constrained or challenging environments. Additionally, lattice boom crawler cranes excel on rough terrain due to their tracked mobility, allowing them to traverse soft soil, mud, and uneven ground easily.
Due to their robust design, lattice boom cranes are often employed in infrastructure projects such as large bridge spans, nuclear power plants, and offshore platforms where stability, heavy lifting, and extended reach are critical.
Advantages of Telescopic Boom Cranes
Telescopic boom cranes offer undeniable convenience and versatility, particularly in urban construction, utilities, and event settings where space and time are limited. The most prominent advantage is the ability to extend and retract the boom quickly. This allows operators to adapt to changing lift heights or reach without needing to dismantle sections or add extensions.
The compact size of telescopic boom cranes means they can be transported quickly and easily on highways and tight roads. This makes them ideal for jobs where crane setup time is critical or where multiple sites need to be served in a single day. Their maneuverability also makes them well-suited for lifting tasks involving delicate equipment or positioning loads in complex spaces.
Hydraulic controls on telescopic boom cranes allow for smooth boom movement, enabling accurate load placements with minimal hassle. Furthermore, their all-terrain variants combine road speed with some off-road capability, increasing the range of projects they can serve.
When to Choose a Lattice Boom Crane
Choosing the right crane depends heavily on the nature of your project. If your work involves lifting extremely heavy or exceptionally tall loads, lattice boom cranes are usually the go-to choice. Their superior lifting capacity and reach can tackle projects that exceed the limits of telescopic cranes.
Projects that require extended boom reach, such as erecting wind turbines or large steel structures at great heights, also benefit from lattice boom cranes. The stability offered by crawler lattice boom cranes on uneven or muddy surfaces can be a decisive factor when site conditions are less than ideal.
If your project is long-term, permanent, or demands repeated heavy lifts, investing in a lattice boom crane or renting one makes sense due to its durability and power. Don’t forget that assembly time and logistics must be considered, so lattice boom cranes work better on sites where cranes can stay in place for days or weeks.
When to Choose a Telescopic Boom Crane
Telescopic boom cranes shine in scenarios where speed, flexibility, and ease of transport are paramount. If your project involves multiple job sites, frequent moves, or a tight schedule, this crane type will save you time and money.
Urban environments, where space is limited and crane setups must be quick and efficient, are perfect for telescopic boom cranes. They are also preferred for lighter to moderate loads and when precision placement is needed within confined spaces.
For maintenance work, utility line installation, or smaller construction projects, telescopic boom cranes are often more cost-effective and practical. Their ability to rapidly adjust boom length also makes them ideal when lift requirements change frequently throughout the day.
Cost Considerations: Which Crane Is More Affordable?
The purchase price, rental rate, and operational costs of lattice boom cranes and telescopic boom cranes vary significantly because of their design and capacities. Typically, lattice boom cranes command a higher upfront cost due to their size, complexity of assembly, and sheer lifting power. They also require more manpower and time to set up and dismantle.
Telescopic boom cranes, being more compact and easier to operate, often have a lower rental and operational cost. Their quick setup and transportation reduce downtime, which can translate to savings on shorter-term projects.
Here’s a brief cost comparison overview:
- Lattice Boom Cranes: Higher purchase/rental price, increased transport and assembly costs, lower fuel consumption during lifts due to efficiency in heavy loads.
- Telescopic Boom Cranes: Moderate purchase/rental costs, lower transport and assembly expenses, higher fuel consumption per ton lifted, but quicker job turnover.
Safety and Maintenance: What To Expect
Safety is non-negotiable in crane operations. Both lattice boom cranes and telescopic boom cranes require rigorous safety checks, operator training, and regular maintenance. Due to their complexity and size, lattice boom cranes often involve more extensive inspections and maintenance tasks, especially on their lattice boom sections.
Telescopic boom cranes require careful hydraulic system maintenance to ensure smooth boom extension and retraction. The hydraulic components, cylinders, and hoses must be checked frequently to avoid breakdowns that could compromise safety.
In both cases, operator certification, load chart familiarity, and proper site assessments are essential to prevent accidents. Choosing between the two should factor in the availability of trained operators and maintenance personnel experienced with each crane type.
Environmental and Space Considerations
Space availability and environmental conditions play an important role in crane selection. Lattice boom cranes require more space for assembly and operation due to their size and boom configuration. Their crawler base, however, distributes weight more evenly, reducing ground pressure on soft soil — a big advantage for environmentally sensitive sites.
Telescopic boom cranes excel in tight, confined job sites where compactness and quick setup are critical. Their rubber-tire or all-terrain bases minimize disturbance on paved or fragile surfaces, making them ideal for urban or indoor applications.
If noise levels and emissions are concerns, telescopic boom cranes with modern engines or electric options can offer quieter and cleaner operation compared to some lattice boom models.
Summary Table: Which Crane Fits Your Needs?
Criteria | Lattice Boom Crane | Telescopic Boom Crane |
---|---|---|
Lifting Capacity | Excellent for ultra-heavy loads | Best for light to moderate loads |
Setup Time | Long, involves assembly | Short, rapid deployment |
Mobility | Good in rough terrain (crawler) | Excellent on-road and moderate off-road |
Flexibility | Fixed boom lengths, sectional | Variable boom length on the fly |
Project Duration | Ideal for long-term heavy projects | Perfect for short-term or multiple jobs |
Cost Efficiency | Higher fixed costs, lower operating costs for heavy lifts | Lower fixed costs, higher operating costs due to shorter jobs |
Space Requirements | Larger footprint during operation | Compact footprint, suited for city sites |
Real-World Applications: When Each Crane Shines
To better illustrate, let’s look at some real-world applications where each crane type excels.
- Lattice Boom Cranes: Construction of tall skyscrapers, installation of massive bridge girders, wind farm development, heavy industrial equipment placement, and petroleum refinery construction.
- Telescopic Boom Cranes: Small to mid-sized building projects, utility repairs, event setups requiring quick lifts, maintenance of existing infrastructure, and projects in congested urban environments.
Understanding where each crane thrives helps in planning and budgeting your lifting requirements effectively.
Final Thoughts on Choosing Between Lattice Boom Cranes and Telescopic Boom Cranes
Deciding between lattice boom cranes and telescopic boom cranes ultimately boils down to the specific demands of your construction or lifting project. Lattice boom cranes offer unbeatable lifting power and reach for heavy-duty, long-term, or challenging terrain projects. In contrast, telescopic boom cranes bring speed, flexibility, and convenience to moderate lifts and fast-paced work sites.
By considering factors such as lift weight, boom reach, site accessibility, project timeline, and budget, you can select the crane type that will optimize your work efficiency and safety. Whether you opt for the rugged strength of a lattice boom crane or the nimbleness of a telescopic boom crane, understanding their unique advantages makes all the difference.
Conclusion
Both lattice boom cranes and telescopic boom cranes have distinct identities tailored to different types of lifting tasks. The lattice boom crane is the heavyweight champion designed for massive loads and difficult conditions, while the telescopic boom crane is the agile workhorse built for speed and versatility. Careful evaluation of your project’s scope, site characteristics, and operational needs will guide you to the right choice. In the end, using the best crane for your project not only enhances productivity but also ensures safety and cost-effectiveness, paving the way for successful project completion every time.
