Mobile cranes are among the most versatile and essential pieces of equipment in the construction and heavy lifting industries. Whether you are strolling through a bustling city skyline under construction or watching an enormous piece of machinery being hoisted at a shipyard, chances are you’re witnessing the power of a mobile crane in action. But what exactly is a mobile crane, and how does it work? This article will take you on a fascinating journey to explore the inner workings, varieties, and uses of mobile cranes, breaking down complex concepts into easy-to-understand insights.

Defining a Mobile Crane

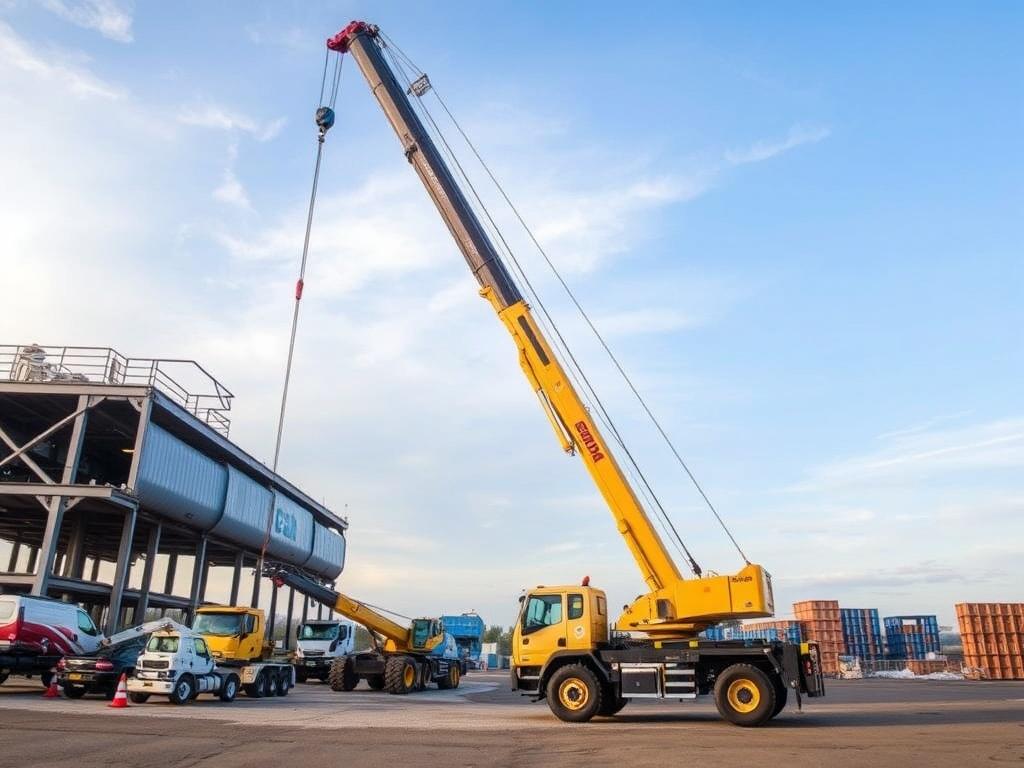

A mobile crane is a type of crane equipped with a telescopic boom or a lattice boom mounted on a mobile platform. Unlike fixed cranes embedded in a particular location, mobile cranes offer the flexibility of movement. These cranes can be driven on roads or moved to various spots within a job site, making them incredibly useful for construction sites, infrastructure projects, and more.

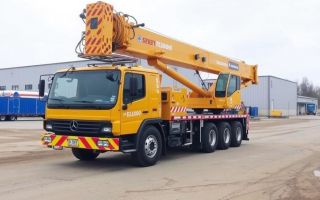

The essential characteristic of a mobile crane is mobility, which reduces the need for assembly or disassembly, saving both time and labor costs. They come in various classes that include truck-mounted cranes, rough terrain cranes, crawler cranes, and all-terrain cranes. Each type has specific applications but shares the common goal of lifting heavy loads to precise locations.

The Core Components of a Mobile Crane

To understand how a mobile crane operates, it helps to break down its major parts. A typical mobile crane consists of the following components:

• Carrier: This is the mobile part that allows the crane to be transported to different locations. It can have wheels or tracks depending on the crane type.
• Superstructure: The rotating platform that sits on the carrier. It houses the engine, operator’s cab, and lifting equipment.
• Boom: The arm of the crane that extends to lift and move loads. It can be telescopic or lattice structured.
• Counterweights: Attached to balance the load being lifted to prevent tipping.
• Hoist: The mechanism with cables and pulleys used to raise and lower loads.
• Outriggers: Extensions that stabilize the crane during lifting operations.

These parts function seamlessly in sync to perform complex lifting tasks with precision and safety.

How Does a Mobile Crane Work?

At first glance, mobile cranes might look like colossal machines that rely solely on brute force to lift enormous weights. While they are undoubtedly powerful, the operation of a mobile crane involves a combination of mechanics, hydraulics, and physics principles to manage loads smoothly and safely.

Step 1: Positioning the Crane

Before lifting anything, the crane operator must position the mobile crane carefully. This involves moving the crane into the work area and extending the outriggers to stabilize it. Outriggers function like extra legs, protecting the crane from tipping when lifting heavy loads.

Step 2: Setting Up the Boom

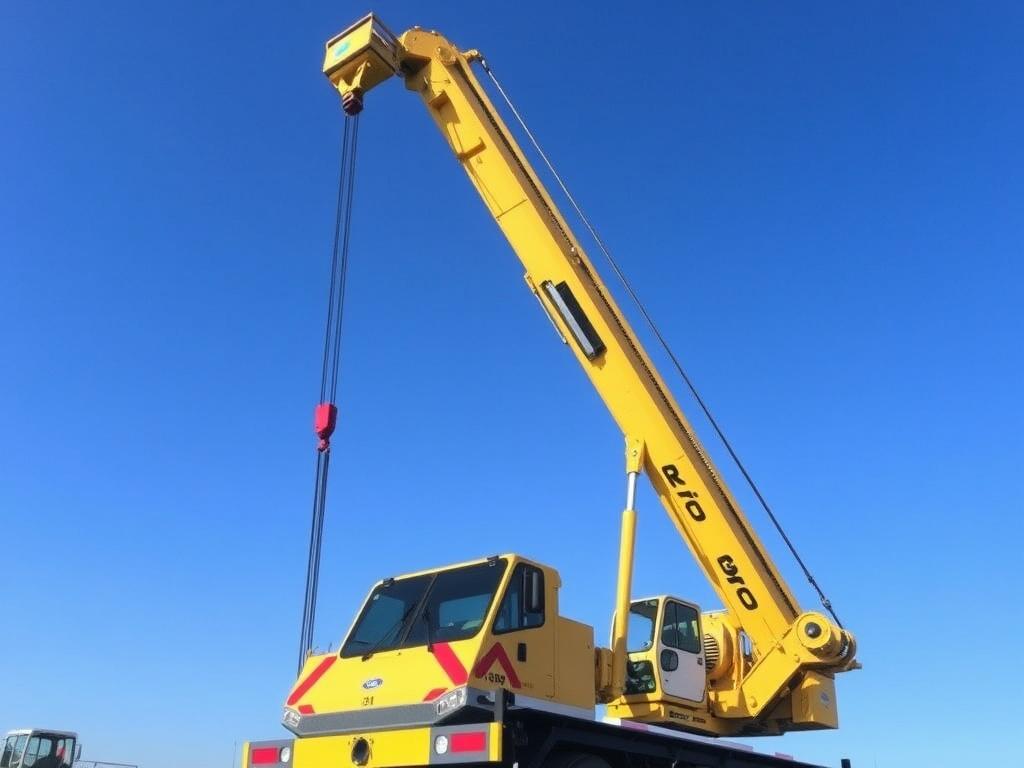

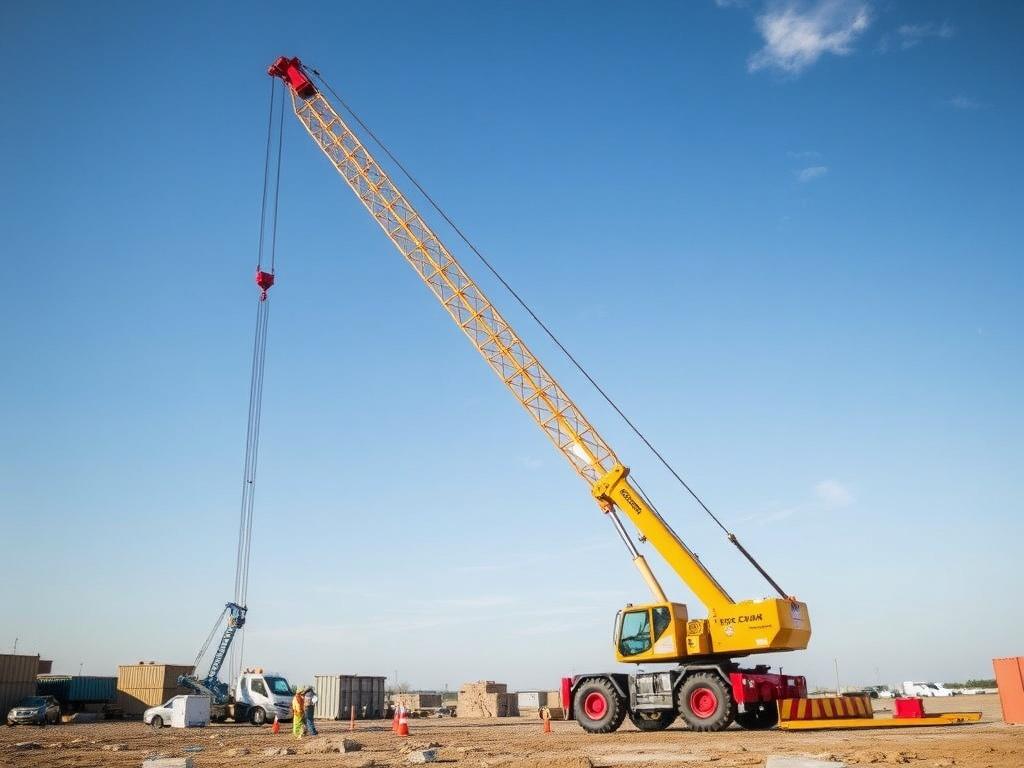

Once stable, the boom is extended. Many mobile cranes use a telescoping boom that comprises several sections nested inside one another. By hydraulically extending these sections, the boom can reach varying lengths with ease. Some cranes use lattice booms, which are constructed from metal beams arranged in a triangular pattern for maximum strength and minimal weight.

Step 3: Attaching the Load

The hoist line, a combination of cables and pulleys, connects a hook or other lifting attachment to the load. The operator or riggers ensure the load is securely fastened using slings, chains, or lifting magnets, depending on the object’s shape and material.

Step 4: Lifting and Moving the Load

By activating the hoist, the load is raised off the ground. Throughout this process, the crane’s systems continuously monitor factors like the angle of the boom, the radius (distance between the crane’s center and the load), and the weight being lifted. Modern cranes feature load moment indicators and other safety devices that alert operators if the crane approaches its limit.

If the load needs to be moved horizontally, the entire superstructure or the boom can rotate 360 degrees on the turntable mounted atop the carrier. The precision of these movements allows the mobile crane to place heavy loads accurately where needed.

Step 5: Lowering and Detaching the Load

After the load reaches its intended destination, it is carefully lowered and detached. The crane’s boom then retracts or folds up, and the mobile crane can move on to the next task.

Types of Mobile Cranes and Their Unique Features

Mobile cranes come in a variety of forms that cater to different types of jobs and terrains. Here’s a breakdown of the most common types:

Each type is designed to optimize performance in specific conditions, highlighting why mobile cranes are indispensable across industries.

The Role of Hydraulics in Mobile Crane Operation

Hydraulics are fundamental to a mobile crane’s ability to lift and maneuver heavy loads smoothly. The use of pressurized fluid allows operators to control movements with precision and strength unmatched by purely mechanical systems.

In a mobile crane, hydraulic pumps supply fluid under high pressure to cylinders and motors. These hydraulic components move the boom sections, lift the hoist, and even rotate the superstructure. One advantage of hydraulics is the ability to multiply force inside a compact system, allowing enormous lifting power within controlled movements.

Operators use joysticks or control panels to regulate hydraulic flow. Sensors provide real-time data, enhancing safety, preventing overload, and ensuring optimal performance.

Safety Mechanisms in Mobile Cranes

Given that lifting massive weights always involves risks, mobile cranes come equipped with numerous safety features to protect both workers and equipment.

• Load Moment Indicator (LMI): Monitors the load weight and boom position, warning the operator of unsafe conditions.
• Anti-Two Block System: Prevents the hook block from hitting the boom tip, which can cause cable damage.
• Outrigger Sensors: Ensure that outriggers are fully extended and on firm ground before lifting operations begin.
• Emergency Stop Buttons: Allow operators to halt all crane functions immediately in case of an emergency.
• Backup Alarms and Lights: Alert nearby workers during crane movements to prevent accidents.

Many countries enforce strict regulations and inspection routines for mobile cranes to uphold these safety standards.

Common Applications of Mobile Cranes

The versatility of mobile cranes makes them a go-to piece of equipment across numerous industries. Here are some of their most prevalent uses:

1. Construction: Erecting steel frameworks, lifting building materials, placing concrete beams.
2. Infrastructure Projects: Installing bridges, assembling large segments of tunnels, and laying pipelines.
3. Shipyards and Ports: Loading and unloading cargo, moving heavy engine components.
4. Wind Energy: Assembling and maintaining wind turbines, which require lifting very tall and heavy parts.
5. Emergency Response: Removing debris after natural disasters or accidents.

Without mobile cranes, many of these operations would be slower, more dangerous, or impossible.

Choosing the Right Mobile Crane

When selecting a mobile crane for a particular job, multiple factors must be considered:

• Load Capacity: Understand the maximum weight the crane can safely lift.
• Reach: Determine the boom length and lifting radius required.
• Terrain Suitability: Assess whether the ground is smooth, rugged, or soft.
• Transport Needs: Check if the crane can easily move between sites or needs special transportation.
• Budget and Time Constraints: Consider rental or purchase costs and setup times.

By matching these parameters with the available crane types, contractors can optimize efficiency and safety.

Maintaining and Inspecting Mobile Cranes

Maintenance is crucial to ensure the longevity and safe operation of mobile cranes. This includes routine checks of hydraulic fluid levels, cables, boom condition, tires or tracks, and safety devices. Operators must be trained to detect signs of wear or malfunction.

Regular inspections might involve:

Following these maintenance routines prevents costly downtime and enhances workplace safety.

The Future of Mobile Cranes: Innovations and Trends

As technology evolves, so does the design and functionality of mobile cranes. Some exciting trends include:

• Automation and Remote Operation: Allowing operators to control cranes from safe distances or even automate repetitive tasks.
• Telematics and IoT Integration: Using sensors and internet connectivity to monitor crane health and performance in real time.
• Electric and Hybrid Powertrains: Reducing emissions and operating costs while maintaining power.
• Lightweight Yet Strong Materials: Advanced alloys and composites make booms lighter without sacrificing strength.
• Enhanced Safety Systems: AI-assisted load calculations and obstacle detection systems.

These innovations promise to make mobile cranes more efficient, safer, and environmentally friendly in the years ahead.

What to Expect When Working with Mobile Cranes on Site

If you find yourself on a construction site or industrial area where mobile cranes are in operation, here are a few points to keep in mind:

• Stay Clear of Load Paths: Never walk under suspended loads, and maintain a safe distance.
• Be Alert to Signals: Crane operators often rely on hand or radio signals from spotters.
• Wear Protective Gear: Helmets, boots, and high-visibility clothing reduce injury risks.
• Report Unsafe Conditions: Alert supervisors to any suspicious mechanical noises or stability issues.
• Understand the Work Schedule: Knowing when lifts happen can help you avoid conflicts with crane movements.

Respecting these guidelines helps ensure your safety and that of everyone on site.

Conclusion

Mobile cranes are indispensable marvels of engineering that blend power, precision, and portability to manage heavy lifting tasks across countless fields. By understanding what a mobile crane is and how it works, you gain appreciation not just for the machine itself but for the skilled operators and engineers who harness its capabilities. From positioning outriggers to extending the boom and carefully controlling lifts through hydraulic systems, mobile cranes exemplify modern machinery’s ability to turn seemingly impossible jobs into everyday feats. As technology advances, mobile cranes will continue evolving, becoming even safer, greener, and more efficient. Whether you encounter one on a job site or witness it in action from afar, knowing the story behind these mechanical giants enriches your view of the world’s ever-changing landscapes shaped by human ingenuity.
